Activewear Print Artwork Files: A Buyer Guide to Repeat, Scale, Colour and Version Control

Direct answer: an artwork file is a production input only when its scope is readable

An activewear print artwork file is ready for a factory conversation when the team can identify the current file, its intended output, actual scale, garment or panel context, colour versions, repeat or direction, and the open decisions that still need a physical sample. A polished image or logo does not answer all of those questions. It may be excellent creative direction while still leaving the factory unable to tell whether the artwork is a small chest mark, a cut-piece repeat, a panel visual, or a placement that must avoid a seam, pocket, zipper, mesh zone, or opening.

This guide is about file readiness and version control. It does not choose a logo method; use the activewear logo application guide when stretch, handfeel, wash appearance, and application candidates need review. It also does not decide final garment placement; use the activewear print placement guide when the visual must relate to a named panel, seam, or landmark. Here, the buyer's job is to give every participant the same current source and a clear list of what it is meant to communicate.

A brand using an existing style plus decoration is normally on a wholesale or light-custom path. A request that changes the garment's fabric, fit, pattern, construction, or visual structure should be treated as custom activewear development, where the artwork record becomes one input to a wider sample brief.

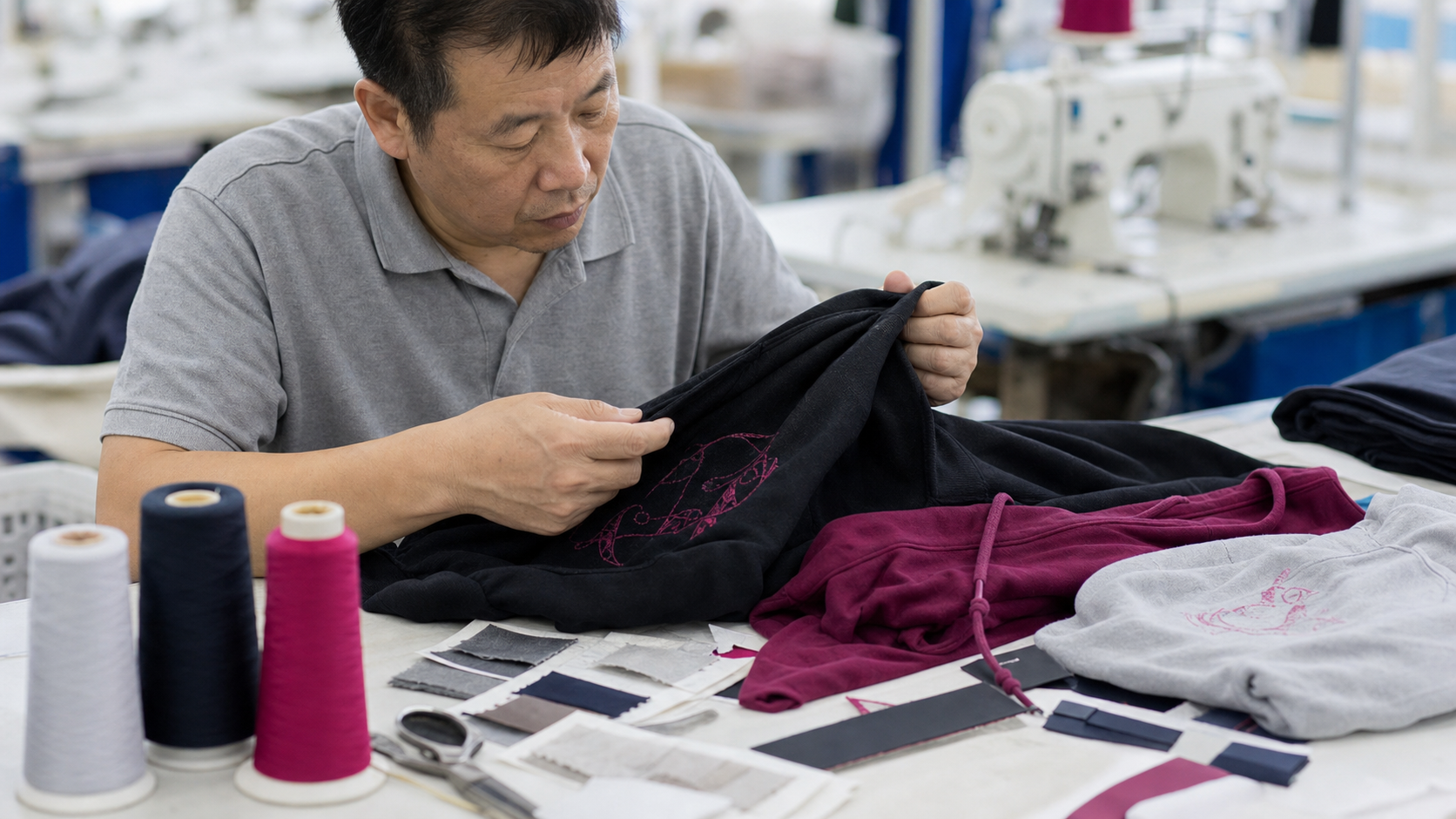

*Factory context can help a team inspect a named garment and its current artwork record. The image is not evidence that a particular print process, colour result, or customer artwork has been approved.*

What should be in the first artwork handover?

Start with one concise cover note. It should say what the visual is, which garment it belongs to, and which decision the recipient is being asked to make. For example: “Artwork A03 is a repeating side-panel visual for the black and burgundy training legging concept; this first handover asks whether the repeat, scale, panel edge and seam relationship can be sampled on the identified base fabric.” That is more useful than attaching three similarly named files with a message saying “please print this.”

A clean folder structure is often enough to prevent expensive confusion. Keep an editable master separate from a view-only proof and label exported files with their revision. If an external designer supplies fonts, linked images, masks, layers or effects, ask whether they are included or converted appropriately for the intended review. Do not assume that a visually complete PDF preserves every item needed for a later production route; equally, do not demand editable proprietary files when the buyer only wants an early feasibility conversation. Name the decision first, then request the form of file that supports that decision.

Vector, raster and placed-image files answer different questions

A vector mark can preserve edges when a local logo changes size, while a raster image may be suitable when the creative work depends on pixels, tonal detail or a photographic effect. That distinction is useful, but it does not make either file automatically printable on the intended product. A raster image needs a known pixel dimension at the intended output size. A vector file still needs a stated size, colour rule, placement context and version.

The buyer should tell the factory whether a linked image is an intentional component or merely a visual reference. A missing linked asset can turn a correct layout into an incomplete package. The same applies to fonts: if the letterform matters, identify whether it is outlined, supplied under the necessary licence, or represented by an approved alternative. Do not silently substitute a font or recreate lettering because the preview looked close. Record any change as a new version.

Transparent areas deserve the same clarity. Transparency may be an intended part of the design, a placeholder, a masking effect, or an accidental export setting. State whether the garment ground is meant to show through and whether the same art has separate versions for dark, light, textured, or colour-blocked bases. The fabrics and trims resource can help the team define the actual material direction, but it does not prove how an artwork will look on that material. A physical strike-off or garment-context sample remains the appropriate evidence when the visual result matters.

How should repeat artwork be made usable for sportswear?

A repeat is not only a decorative tile. It has a direction, a scale, an edge relationship, and a relationship to the fabric width and eventual pattern pieces. State whether the repeat is straight, half-drop, mirrored, directional, engineered, or still exploratory. Include the repeat tile dimensions and identify which edge joins which. If the design has an intentional top and bottom, make that explicit; otherwise a cutting or layout assumption can invert the visual on a panel.

For activewear, also identify what may happen where a repeat meets a side seam, inseam, gusset, waistband, pocket, binding, mesh insertion or zipper. The aim is not to promise perfect alignment across every garment. It is to decide where alignment is required, where variation is acceptable, and where a visual must not appear. A broad all-over print may tolerate a cut difference that an engineered leg graphic cannot. A panel-specific artwork may need a pattern map before the team can decide whether it belongs on fabric before cutting or on a later garment area.

Use a simple panel map even at early stage. It can show front, back, side, inner leg, waistband, sleeve, shoulder, pocket and opening zones with arrows and a small legend. Mark safe zones, no-print zones, crops and artwork directions. The activewear printing methods guide addresses the wider question of which route may suit a defined print task; this file guide makes sure the team is discussing the same task.

Why actual size and garment proportion must be stated

“Make it bigger” is not a measurable instruction. Give a dimension, a relationship to named garment landmarks, or both. For a local chest graphic, specify whether the visual is measured from the artwork edge, the visible mark, or an enclosing box. For a panel visual, show the panel boundary and the intended crop. For a repeat, state its tile dimensions and whether scale can change by size.

The garment must remain identifiable. A supplied front-view rendering can be helpful, but it may not show the side seam, rise, gusset, sleeve curve, shoulder seam, underarm, zipper, pocket or back-panel relationship. Mark the relevant construction feature in the handover and describe the desired treatment: avoid, cross, align to, stop before, or continue through. If the same artwork will be used on more than one style, keep each style's placement and scale record separate. One file can support multiple uses; one approval should not be stretched across unrelated garment contexts.

Build colour versions before asking for an approval

A colourway list should say which artwork version belongs to which garment ground. Do not rely on a screen image to establish final physical colour, opacity, contrast, or edge appearance. Instead, supply the known references, identify the garment base and material direction, and state what requires sample confirmation. Where a visual uses a light-on-dark and dark-on-light alternative, give them distinct file names and a table that maps each to its intended colourway.

If a brand uses a named colour system, retain the name and edition used in the brief. If the factory receives a digital value, treat it as a communication input rather than a guarantee that it will reproduce identically on every fabric or process. The relevant material, coverage, colour count, sample route and observation conditions can all affect the discussion. Avoid claims such as “colourfast” or “exact match” unless a project-specific, documented requirement and result supports that wording.

A practical preflight sequence before quotation or sampling

1. Freeze the current artwork revision and record its owner.
2. Name the garment, colourway, panel, sample version and intended output.
3. Confirm actual size, direction, repeat, crops and no-print zones.
4. Map every light/dark or colourway-specific file to its intended garment use.
5. List linked files, fonts, transparency and effects that require review.
6. State what the factory is being asked to assess: feasibility, a route proposal, a strike-off, a garment sample, or a production handover.
7. Keep sample observations, requested changes and approvals attached to the same revision record.

The preflight should deliberately leave unknowns visible. A buyer may not yet know the final material, exact quantity mix, or chosen decoration route. That is acceptable if the file package marks those inputs as open. A supplier response can then explain the assumptions behind a proposed approach, rather than allowing open details to become unspoken production instructions.

What should happen after a proof or sample?

Do not replace a decision record with “approved” in an email thread. State the sample or proof ID, artwork revision, garment version, colourway, viewed area, reviewer, date, accepted points, unresolved points and next action. If a change affects scale, orientation, artwork, material, colourway, placement or garment construction, create or name a new revision and say which prior approval no longer applies.

That discipline matters for reorders too. A prior logo file may still be useful, but a change in garment reference, fabric face, colour, panel shape or application method can make its earlier evidence incomplete. Retain the accepted record, then ask the factory to identify which parts can be reused and which need renewed sample review. The custom activewear RFQ guide can help keep artwork scope, product scope and quotation assumptions comparable when several suppliers are responding.

Send a decision-ready artwork pack

Send the editable or review file that matches the request, the garment reference, a panel map, intended dimensions, repeat or orientation details, colour versions, target quantity direction and sample purpose. Include open questions rather than filling them with assumptions. inPACE can coordinate a project-specific review with relevant production partners, but each route, material, artwork, scope and sample still needs confirmation. Contact inPACE with the files and the decision you want the first review to answer.
